    Ürün ayrıntıları:

    Menşe yeri: Shenzhen, Çin
    Marka adı: New Light
    Sertifika: CE , ISO , RoHS
    Model numarası: FC APC

    Ödeme & teslimat koşulları:

    Min sipariş miktarı: Pazarlık
    Fiyat: can be negotiated
    Ambalaj bilgileri: Standart ihracat paketi
    Teslim süresi: 7-15 iş günü (miktarınıza bağlıdır)
    Ödeme koşulları: T/T, Western union, MoneyGram, Paypal
    Yetenek temini: 100.000 Adet / ay
    Şimdi başvurun
    Detaylı ürün tanımı
    Ürün adı: Bağlayıcı türü:
    Mod türü: Tek modu Çalışma dalgaboyu: 1064nm
    PDL: ≤0.2dB Dönüş kaybı:
    : Uygulama:
    : : ≥40 dB



    Optical Fiber Circulator Product Name

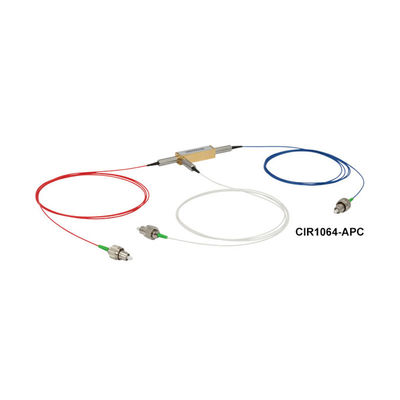

    FC APC connector Optical Fiber electronic Circulator Single-Mode Optical Fiber Parts





    Optical Fiber Circulator Description



    Single Mode (SM) Optic Circulators are non-reciprocating, one-directional, three-port devices that are used in a wide range of optical setups and for numerous applications.



    Because of its high isolation and low insertion loss, optical circulators are widely used in advanced communication systems as add-drop multiplexers, bi-directional pumps, and chromatic dispersion compensation devices.



    Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.



    An optical circulator is analogous to an electronic circulator and both perform similar functions.



    An optical circulator is a three-port device that allows light to travel in only one direction.



    Circulators can also be used to send optical signals in two directions down a single fiber. A circulator is located at both ends of the fiber.



    A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.



    Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.





    Optical Fiber Circulator Features

    High isolation & High Return Loss

    Low insertion loss & PDL
    Optical Path Epoxy Free



    Optical Fiber Circulator Applications

    Fiber optical Amplifier

    Fiber Laser





    Optical Fiber Circulator Specifications

    Item Unit Parameters
    Operating wavelength nm 1064
    Bandwidth nm ±5 ±10 ±20 ±30
    Isolation dB ≥25 ≥23 ≥20 ≥20
    Insertion Loss@Band,23℃ dB ≤2.1 ≤2.6 ≤3.2 ≤3.8
    PDL dB ≤0.2
    Return Loss dB ≥ 50
    Cross Talk dB ≥ 45
    PDL dB ≤ 0.1
    Maximum Optical Power mW ≤ 300
    Fiber Type / Hi1060
    Operation Temperature 0C 0~50
    Storage Temperature 0C -40~85
    Package Dimension mm 34x8.4x8.4(P1)

    Note:

    • All the specifications are based on the devices without connector, and guaranteed over wavelength, polarization and temperature.

    2. Specifications are subject to change without notice.

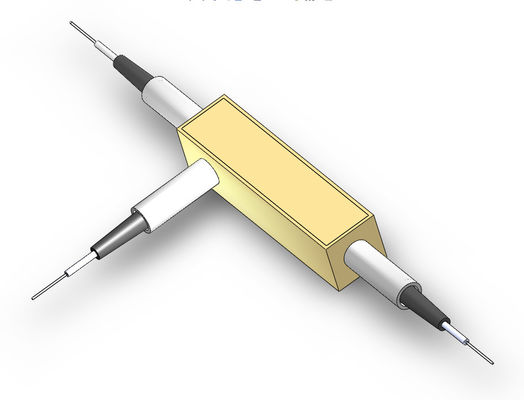

    Optical Fiber Circulator Dimension(mm)



    FC APC Connector Optical Fiber Electronic Circulator Single Mode Optical Fiber Partsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'tr', function () {});}



    Optical Fiber CirculatorOrdering Information(Example:CIR-12210)



    CIR- â–¡ â–¡ â–¡ â–¡ â–¡
      Wavelength Bandwidth Fiber Type Fiber Length Connector Type

    1.1064nm

    2.Others





    1.±5nm

    2.±10nm

    3.±20nm

    4.±30nm

    1.250μm fiber

    2.900μm fiber

    3. Others

    1.0.5 +/- 0.1 m

    2. 1.0 +/- 0.1 m

    3. Others

    0.No Connector

    1. FC/UPC

    2. FC/APC

    3. SC/UPC

    4. SC/APC

    5. LC/PC

    6. MU/PC

    7. Others
