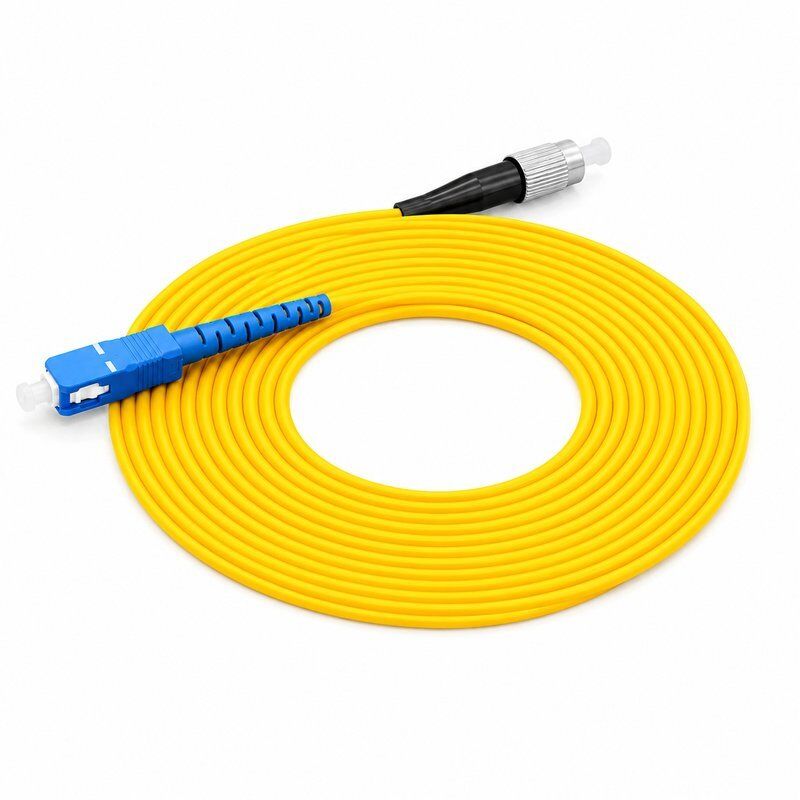

Low Insertion Loss ≤0.15dB Bend Insensitive G657A1 Fiber Optic Patch Cord with Multiple Connector Types

Marka Adı:	WNRLN
Model Numarası:	OS2-LIL-SM-001
Moq:	10 adet
fiyat:	USD 0.80-8.50 / Piece
Paketleme Ayrıntıları:	Konektör toz kapaklı bireysel PE torba, WNRLN markalı renk kutusu, ihracat sınıfı oluklu karton
Ödeme Şartları:	T/T,L/C,PayPal,Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Guangdong, Çin

Sertifika:

ISO 9001:2015, RoHS, CE, TIA/EIA-568-C.3

Elyaf türü:

OS2 Tek Mod (G652D / G657A1 / G657A2)

Konektör Türleri:

SC, LC, FC, ST, E2000, MPO, MTRJ

Lehçe Türü:

UPC / APC

Ekleme Kaybı:

≤0,15dB Tipik, ≤0,20dB Maks

İade Kaybı:

≥50dB (UPC), ≥60dB (APC)

Çekirdek Sayısı:

Simpleks / dubleks

Kablo çapı:

0,9 mm / 2,0 mm / 3,0 mm

Ceket Malzemesi:

PVC / LSZH / OFNP / OFNR

Çalışma Dalga Boyu:

1310nm / 1550nm

Çalışma Sıcaklığı:

-40 ° C ila +75 ° C

Depolama Sıcaklığı:

-45°C ila +85°C

Yüksük malzemesi:

Zirkonya seramik

Önyükleme türü:

Standart / Esnek / Kısa Önyükleme

Yetenek temini:

Ayda 100000 adet

Vurgulamak:

Low Insertion Loss Fiber Patch Cord

OS2 G657A1 Single Mode Jumper

SC LC FC ST E2000 Connector

Ürün Tanımı

Low Insertion Loss OS2 Single Mode Fiber Patch Cord

Ultra-Low Insertion Loss Fiber Optic Connectivity

Industry-leading ≤0.15dB insertion loss performance with G657A1 bend insensitive fiber and comprehensive connector options for telecom and data center applications.

Key Features

Ultra-Low Insertion Loss: Typical ≤0.15dB, Maximum ≤0.20dB — minimizing signal degradation for superior transmission performance
7 Connector Types Available: SC, LC, FC, ST, E2000, MPO, and MTRJ connectors — comprehensive solution for diverse network requirements
Bend Insensitive G657A1: Ensures stable performance even under tight bends, ideal for high-density patching and constrained routing
UPC & APC Polish Options: Available with UPC (≥50dB return loss) and APC (≥60dB return loss) polish for precise network requirements

Technical Specifications

Fiber Type	OS2 Single Mode (G652D / G657A1 / G657A2)
Connector Types	SC, LC, FC, ST, E2000, MPO, MTRJ
Polish Type	UPC / APC
Insertion Loss	≤0.15dB Typical, ≤0.20dB Max
Return Loss (UPC)	≥50dB
Return Loss (APC)	≥60dB
Core Count	Simplex / Duplex
Cable Diameter	0.9mm / 2.0mm / 3.0mm
Jacket Material	PVC / LSZH / OFNP / OFNR
Operating Wavelength	1310nm / 1550nm
Operating Temperature	-40°C to +75°C
Ferrule Material	Premium Zirconia Ceramic
Certification	ISO 9001:2015, RoHS, CE, TIA/EIA-568-C.3

Applications

Telecommunication Networks

Long-haul and metro optical transport systems requiring minimal signal loss

FTTH / FTTx Deployments

Last-mile fiber to the home with G657A1 bend insensitive fiber for tight routing

Data Center Interconnect

High-density server-to-switch and switch-to-switch fiber patching with low loss performance

CATV & Broadcast Networks

APC polished connectors ideal for RF over fiber with high return loss requirements

Connector Types

SC Connector

Square Connector — Push-Pull design, standard for telecom and CATV networks

LC Connector

Lucent Connector — Small Form Factor, ideal for high-density data center patching

FC Connector

Ferrule Connector — Threaded design, suitable for high-vibration industrial environments

ST Connector

Straight Tip — Bayonet coupling, commonly used in legacy enterprise and campus networks

E2000 Connector

Premium connector — Spring-loaded shutter, designed for high-power and safety-critical links

MPO Connector

Multi-Fiber Push-On — Essential for 40G/100G parallel optic links

MTRJ Connector

Mechanical Transfer RJ — Compact duplex design for legacy installations

Quality Assurance

Each patch cord undergoes 100% end-face inspection and insertion loss testing before shipment. Custom lengths, connector combinations, and jacket materials available. Contact us for OEM/ODM inquiries and bulk wholesale pricing.

100% Tested

3-Year Warranty

ISO 9001 Factory

Custom OEM/ODM
