FC APC SM Wavelength Optical Fiber Circulator From 1280 - 1400 Nm Hi1060 Fiberfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'tr', function () {});}

Marka Adı:	New Light
Model Numarası:	FC
Moq:	10
fiyat:	1~30
Paketleme Ayrıntıları:	İhracat paketi
Ödeme Şartları:	T/T, Western union, MoneyGram, Paypal

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO ,ROSH

Ürün adı:

Bağlayıcı türü:

Mod türü:

Tek modu

PDL:

≤0.2dB

Dönüş kaybı:

Fiber türü:

3 bağlantı noktası

Uygulama:

Dalga boyu aralığı:

Paket boyutu:

Kablo çapı:

0.9mm

Kablo uzunluğu:

özelleştirilmiş

Yetenek temini:

1000000

Vurgulamak:

Tek modlu fiber splitter

fiber optik kablo splitter

Ürün Tanımı

Optical Fiber Circulator Product Name

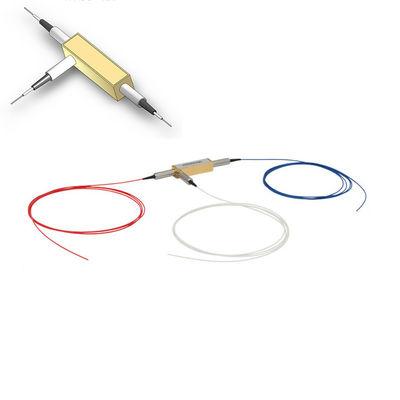

FC APC SM Wavelength Optical Fiber Circulator from 1280 - 1400 nm Hi1060 Fiber

Optical Fiber Circulator Description

What is Optical Fiber Circulator

The function of an optical Fiber circulator is similar to that of a microwave circulator.

It is a three or more ports multiport device. Lightwave is transmitted from one port to the next sequential port with a minimum loss but is blocked from one port to the previous port.

Optical circulators were first used in telecom systems. However, with the ready availability of low-cost and high-performance circulators, they are also used in sensing and imaging fields.

An optical circulator is a three-port device that allows light to travel in only one direction.

Optical circulators were first used in telecom systems to increase the transmission capacity of existing networks. By using optical circulators in a bidirectional transmission system, the capacity is easily doubled as shown below.

Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free

Optical Fiber Circulator Applications

Add-Drop Multiplexing
Fiber Sensors
Bidirectional Pumping
Bidirectional Signal Transmission Systems
Coupling In-Line Chromatic Dispersion Compensation Devices

Optical Fiber Circulator Specifications

Item	Unit	Parameters
Operating wavelength	nm	1064
Bandwidth	nm	±5	±10	±20	±30
Isolation	dB	≥25	≥23	≥20	≥20
Insertion Loss@Band,23℃	dB	≤2.1	≤2.6	≤3.2	≤3.8
PDL	dB	≤0.2
Return Loss	dB	≥ 50
Cross Talk	dB	≥ 45
PDL	dB	≤ 0.1
Maximum Optical Power	mW	≤ 300
Fiber Type	_/	Hi1060
Operation Temperature	⁰C	0~50
Storage Temperature	⁰C	-40~85
Package Dimension	mm	34x8.4x8.4(P1)

Note:

All the specifications are based on the devices without connector, and guaranteed over wavelength, polarization and temperature.

2. Specifications are subject to change without notice.

Optical Fiber Circulator Dimension(mm)

Optical Fiber CirculatorOrdering Information(Example:CIR-12210)

CIR-	□	□	□	□	□
	Wavelength	Bandwidth	Fiber Type	Fiber Length	Connector Type
	1.1064nm 2.Others	1.±5nm 2.±10nm 3.±20nm 4.±30nm	1.250μm fiber 2.900μm fiber 3. Others	1.0.5 +/- 0.1 m 2. 1.0 +/- 0.1 m 3. Others	0.No Connector 1. FC/UPC 2. FC/APC 3. SC/UPC 4. SC/APC 5. LC/PC 6. MU/PC 7. Others
